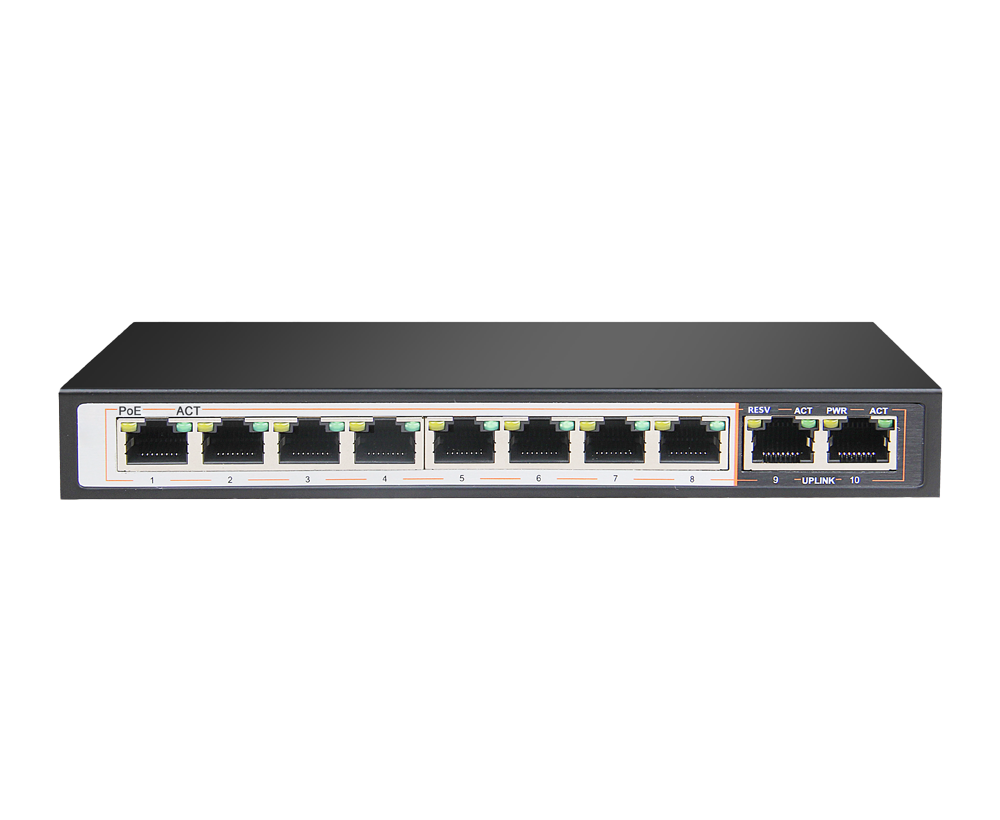

The D-Link DES-F1010P-E is a 10-port Fast Ethernet PoE switch tailored for modern security surveillance and small business networks. This robust, unmanaged switch features eight Fast Ethernet PoE ports alongside two Gigabit Ethernet uplink ports. It bridges the gap between high-power delivery and reliable data transmission. It eliminates the need for complex software management, making it an ideal plug-and-play solution for deploying IP cameras, access points, and VoIP systems.

This switch simplifies network deployment by carrying data and electrical power over a single Ethernet cable.

• Standards: Fully supports IEEE 802.3af and IEEE 802.3at PoE/PoE+ protocols.
• Power Budget: Delivers up to 30 watts per individual port with a generous 120W total PoE budget.
• Compatibility: Safely powers high-draw devices like pan-tilt-zoom (PTZ) cameras and Wi-Fi 6 access points.

Unlike standard switches that throttle data at the bottleneck, this model features two dedicated Gigabit uplink ports.

• High-Speed Aggregation: Provides smooth 1000 Mbps connections to your core network router, Network Video Recorder (NVR), or server.
• Dual Uplinks: Allows you to connect to an NVR and an internet gateway simultaneously without sacrificing any downstream PoE ports.

The front panel features a physical DIP switch that activates four smart, hardware-integrated modes to optimize performance without a management interface:

[ EXTEND ] ---> Drops speed to 10Mbps to extend PoE transmission up to 250 meters.
[  VLAN  ] ---> Isolates PoE ports from each other to prevent broadcast storms.
[  QoS   ] ---> Prioritizes video packets to guarantee smooth surveillance feeds.
[  POE   ] ---> Watchdog mode automatically power-cycles frozen or crashed IP devices.

• Extend Mode: Overcomes the standard 100-meter Ethernet limitation. It extends power and data delivery up to 250 meters at 10 Mbps speed, which is perfect for expansive outdoor camera layouts.
• VLAN Mode: Isolates the downstream ports from one another while allowing communication with the uplinks. This boosts security and prevents malicious lateral network movement.
• QoS (Quality of Service): Automates traffic prioritization. It ensures that critical video and voice data receive maximum bandwidth, eliminating choppy footage or dropped frames.
• Intelligent PoE Watchdog: Constantly monitors the status of connected devices. If a camera stops responding, the switch automatically power-cycles the specific port to reboot the frozen device.

Built to endure challenging installation environments, the DES-F1010P-E focuses on longevity and resilience.

• Surge Protection: Features robust 6kV lightning protection on all ports to safeguard internal circuitry against voltage spikes.
• Fanless Architecture: Housed in a rugged, compact metal chassis that dissipates heat passively, ensuring dead-silent operation and fewer moving parts to fail.
• Flexible Mounting: Desktop and wall-mountable design allows for clean installation inside compact security cabinets or office spaces.

• Total Ports: 10 Ports (8 x 10/100 Mbps PoE + 2 x 10/100/1000 Mbps Uplink)
• PoE Budget: 120 Watts
• Switching Capacity: 5.6 Gbps bandwidth
• MAC Address Table: 16K entries
• Enclosure: Heavy-duty metal casing

The D-Link DES-F1010P-E delivers commercial-grade reliability, smart device management, and high-wattage power delivery to any small business or security infrastructure.
