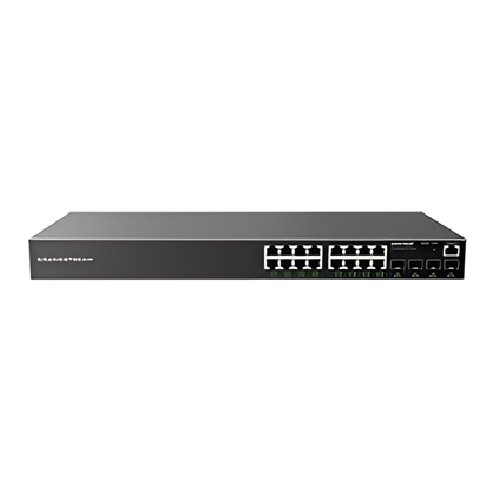

Grandstream GWN7802 Layer2 16 Port Man Switch

Grandstream GWN7802 Enterprise Layer 2+ Managed Network Switch with 16 x 1GigE, 4 x SFP Ports

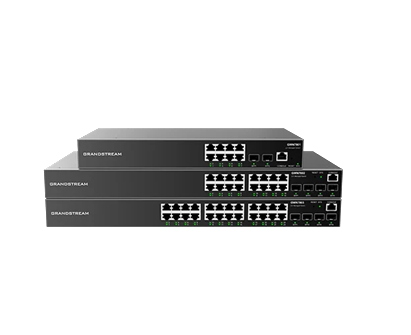

The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable,
secure, high-performance, and smart business networks that are fully manageable. They support advanced VLANs for
flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for
network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models
provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints.
The GWN7800 series can be managed in a number of ways, including the local web user interface of the switches.
The series is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi
management platforms, and GWN series routers. These enterprise-grade switches are the ideal networking solution
for growing businesses.

Features & Benefits of Grandstream GWN7802 Layer2 16 Port Man Switch

Powerful Business Processing Capabilities
• Unicast routing via ACL for data routing between network
segments.
• DHCP Server and Relay to assign IP addresses to hosts in the
network.
• Built-in QoS, including Port Priority, Priority Mapping, Queue
Scheduling, Traffic Shaping and Rate Limit.
• ACLs to filter data packets based on matching rules, processing
operations, and time schedules, providing flexible security access
control policies.
• IGMP Snooping and MLD Snooping to optimize multi-terminal HD
video surveillance and video conferencing traffic.
• IPv6 support to facilitate a smooth network transition from IPv4 to
IPv6.

Multiple Security Prevention Mechanism
• Static MAC tables and dynamic MAC tables allow data transmission,
and MAC table filtering protects against network attacks.
• Packet filtering based on binding of IP address, MAC address, VLAN
and port.
• Dynamic ARP Inspection protects against ARP spoofing and ARP
flooding attacks including gateway spoofing and man-in-the middle
attacks that are common in LAN environments.
• IP/IPv6 Source Guard prevents illegal address spoofing including
IP(v6)/MAC/ VLAN spoofing and IP(v6)/VLAN spoofing.
• DoS Attack Defense prevents Land Attacks, Smurf Attacks, TCP SYN
Attacks, Ping Flooding and more.
• 802.1X, MAC, RADIUS, AAA, and TACACS+ authentications provide
authentication LAN devices.
• With port security, when the number of MAC addresses learned by
a port reaches the maximum number, it will be set to error-down
status automatically to stop learning and prevent MAC address
attacks while controlling the network traffic of the port.
• With DHCP/DHCPv6 Snooping, only DHCP/DHCPv6 packets from
trusted ports are allowed to keep the enterprise DHCP/DHCPv6
environment safe.

Diverse Reliability Protection
• Support fault detection and alarm for power supply and fan, and
automatically adjust the fan speed based on temperature changes
to better adapt to the environment.
• Multiple reliability protection at device level, such as overcurrent
protection, overvoltage protection, overheat technology and surge
protection.
• STP/RSTP/MSTP guarantees fast convergence, improves fault
tolerance, ensures network stability and provides link load
balancing and redundancy.
• Compatible with PVST(+) / RPVST(+) for faster convergence,
optimizing network performance through VLAN-based network load
balancing.
• Loopback detection to keep the port in normal use.
• Link aggregation to increase bandwidth, improve reliability and load
balancing.
• Storm control to prevent traffic impact.

PoE Power Suuply Capability (GWN780XP Series Only)
• Complies with IEEE 802.3af/at standards to meet the PoE power
supply requirements of security monitoring, audio and video
conferencing, wireless signal coverage and more.
• User-defined time periods allow users to control the power supply
of PoE ports on Web UI.
• Priority of PoE ports settings allow the series to power ports based
on priorities when power is insufficient.
• The maximum output power is 30 W per port. Users can configure
the maximum power output via the Web UI.
• Dynamic power negotiation via LLDP-MED.

Easy Management and Maintenance
• Managed via Web GUI, CLI (Console, Telnet), and SNMP (v1/v2c/v3).
• CPU and memory monitoring, Ping, Traceroute, UDLD (TBD), and
copper testing to diagnose cable faults and network node issues
easily.
• RMON, Syslog, and traffic statistics to optimize the network.
• LLDP and LLDP-MED for convenient topology discovery and device
status tracking.
• Managed by GDMS Networking and GWN Manager, and can also be
managed by GWN routers.

Power & Green Energy Efficiency
• All Ethernet ports support EEE (Energy Efficient Ethernet), providing
fast transitions between normal operation and low-power states to
reduce power consumption during low traffic.
• Intelligent control of fan speed based on environmental
temperature for precise temperature regulation, energy savings,
and noise reduction.
IPv4/IPv6 Dual Protocol Stack
• IPv4 routing protocol, including IPv4 static routing to satisfy
different networking needs.
• IPv6 routing protocols, including IPv6 static routing to satisfy
different networking needs.
• Supports deployment in pure IPv4, pure IPv6, or dual-stack
networks to fully meet modern networking requirements.

IPv4/IPv6 Dual Protocol Stack
• IPv4 routing protocol, including IPv4 static routing to satisfy
different networking needs.
• IPv6 routing protocols, including IPv6 static routing to satisfy
different networking needs.
• Supports deployment in pure IPv4, pure IPv6, or dual-stack
networks to fully meet modern networking requirements.
