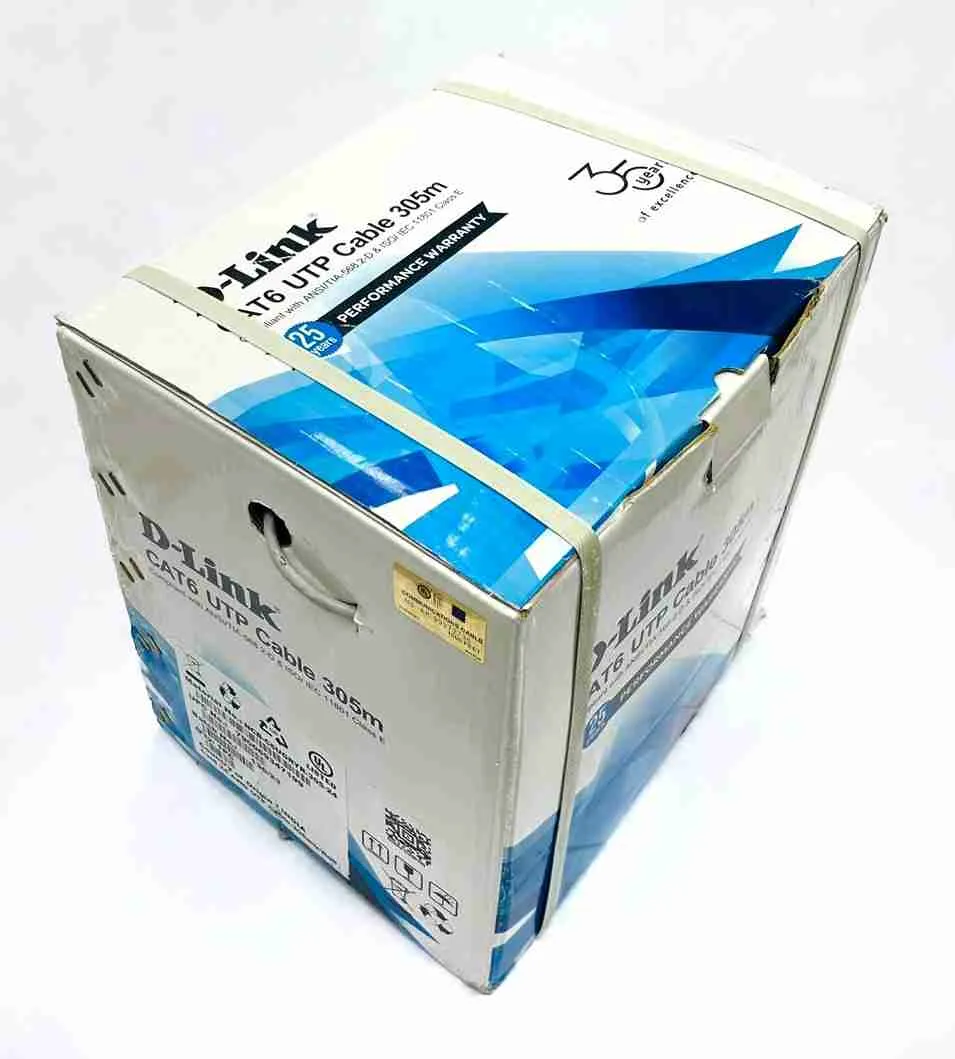

D-Link NCB-C6UGRYR-305 CAT6 UTP Cable
Rs 66,900.00
D-Link NCB-C6UGRYR-305 CAT6 UTP Cable
Enhanced performance cable for transmission of high
speed data, digital and analogue voice and video (RGB)
signals on LANs. Supports Gigabit Ethernet (1000
baseT) standard.
This cable will meet the requirements of
ANSI/TIA‑568‑C.2 category6 ISO 11801 Class E
ROHs compliant
Approval ꞉ UL Listed & ETL Verified
D-Link NCB-C6UGRYR-305 CAT6 UTP Cable
Enhanced performance cable for transmission of high
speed data, digital and analogue voice and video (RGB)
signals on LANs. Supports Gigabit Ethernet (1000
baseT) standard.
This cable will meet the requirements of
ANSI/TIA‑568‑C.2 category6 ISO 11801 Class E
ROHs compliant
Approval ꞉ UL Listed & ETL Verified
Here is a detailed, SEO-friendly product specification (approximately 600 words) for the D-Link NCB-C6UGRYR-305 CAT6 UTP Cable.
D-Link NCB-C6UGRYR-305 CAT6 UTP Cable
Detailed Specifications
The D-Link NCB-C6UGRYR-305 CAT6 UTP Cable is a premium-quality structured networking cable engineered to deliver reliable, high-speed Ethernet connectivity for modern business, enterprise, and residential network installations. Designed with solid bare copper conductors and manufactured to meet internationally recognized networking standards, this Category 6 cable provides excellent transmission performance, reduced crosstalk, and outstanding signal integrity. It is an ideal solution for Gigabit Ethernet networks, IP surveillance systems, VoIP communications, data centers, educational institutions, offices, and commercial buildings.
High-Speed Data Transmission
The D-Link CAT6 UTP cable supports data transmission speeds of up to 1 Gigabit per second (1000 Mbps) with an operating bandwidth of 250 MHz, making it suitable for demanding network applications. It is fully compatible with 10BASE-T, 100BASE-TX Fast Ethernet, and 1000BASE-T Gigabit Ethernet standards, ensuring stable and efficient communication across Local Area Networks (LANs). The cable exceeds the performance requirements specified by TIA/EIA standards, enabling reliable connectivity for today’s high-bandwidth applications.
Superior Cable Construction
The cable consists of four unshielded twisted pairs (UTP) designed to minimize electromagnetic interference (EMI) and reduce Near-End Crosstalk (NEXT). Each conductor is manufactured using solid bare copper, providing lower electrical resistance, improved signal quality, and superior long-distance performance compared to copper-clad alternatives.
A PE central cross separator is incorporated within the cable structure to maintain consistent pair spacing and further reduce signal interference between wire pairs, enhancing network stability and transmission accuracy.
Technical Specifications
- Category: CAT6 UTP
- Cable Length: 305 meters (1000 feet)
- Conductor Material: Solid Bare Copper
- Conductor Size: 24 AWG (0.52 mm nominal)
- Number of Pairs: 4 Twisted Pairs
- Insulation Material: High-Density Polyethylene (HD-PE)
- Insulation Diameter: 0.94 mm nominal
- Outer Jacket: PVC UL94V-0 Flame Retardant
- Cable Diameter: Approximately 5.7 mm
- Cable Color: Grey
- Characteristic Impedance: 100Ω ±15%
- Mutual Capacitance: 5.6 nF/100 m (nominal)
- Nominal Velocity of Propagation: 69%
- Maximum Conductor Resistance: Less than 9.38Ω per 100 m
- Resistance Unbalance: Maximum 5%
- Capacitance Unbalance: 330 pF/100 m
- Delay Skew: Less than 45 ns
- Recommended Bending Radius: Minimum four times the cable diameter
- Operating Temperature: -20°C to +70°C
- Maximum Pulling Force: Approximately 11.5 kg
Certified Quality and Compliance
The D-Link NCB-C6UGRYR-305 is manufactured in accordance with internationally accepted structured cabling standards. It is:
- Verified to comply with TIA/EIA-568C.2
- Designed according to ISO/IEC 11801
- ETL Verified
- cUL Listed
- RoHS Compliant
These certifications ensure dependable performance, environmental safety, and compatibility with professional networking installations.
Ideal Applications
This CAT6 cable is suitable for a wide range of networking environments, including:
- Enterprise and corporate LAN infrastructure
- Data centers and server rooms
- Educational institutions
- Government organizations
- Hotels and hospitality networks
- Smart homes
- IP CCTV surveillance systems
- VoIP telephone systems
- Wireless Access Point (Wi-Fi) installations
- Patch panel and structured cabling deployments
Its robust construction and excellent electrical characteristics make it suitable for long-term installations requiring high reliability and consistent network performance.
Key Features
- High-performance CAT6 UTP network cable
- 305-meter pull box for professional installations
- Solid bare copper conductors for superior conductivity
- 250 MHz bandwidth supporting Gigabit Ethernet
- PE central cross separator minimizes crosstalk
- Flame-retardant PVC jacket for added safety
- Excellent signal integrity and low attenuation
- Compatible with standard RJ45 networking components
- Ideal for commercial, industrial, and residential networking projects
- Manufactured to international quality standards for dependable performance
The D-Link NCB-C6UGRYR-305 CAT6 UTP Cable is an excellent choice for IT professionals, network installers, and system integrators seeking a reliable, high-performance Ethernet cabling solution that delivers consistent network speeds, superior durability, and future-ready connectivity for modern digital infrastructure.
