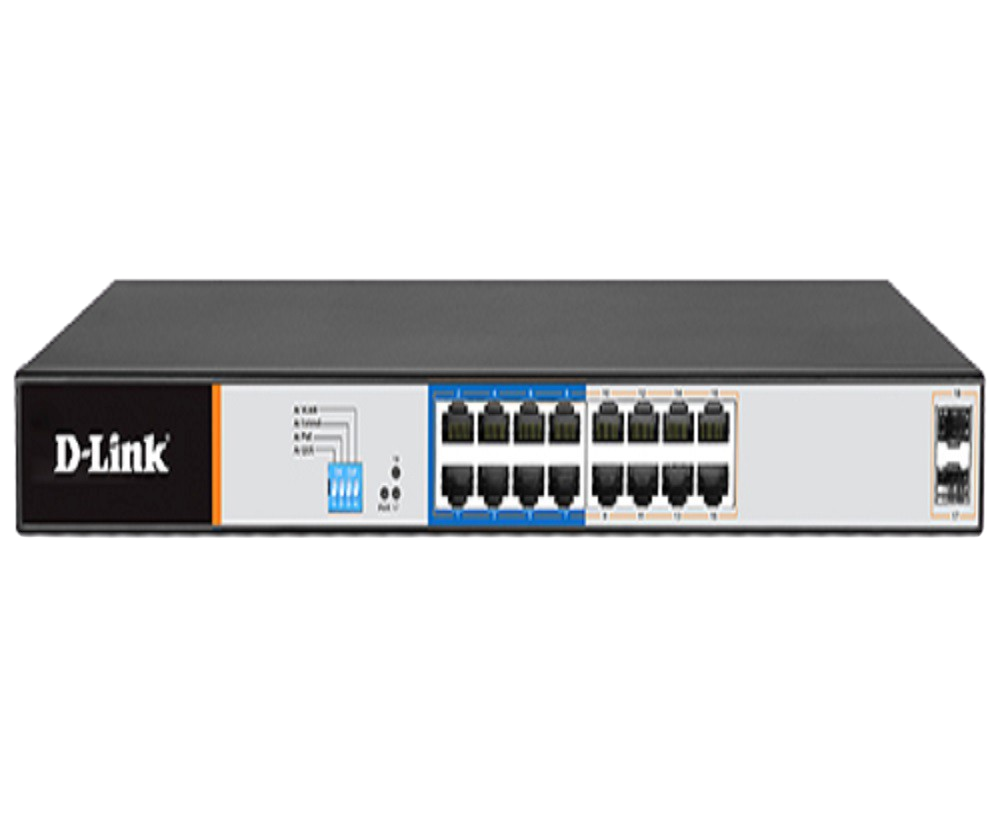

D-Link DGS-F1018P-E 16GE SFP Uplink PoE switch

D-Link DGS-F1018P-E 16GE PoE 2 SFP Uplink PoE switch

16 10/100/1000 Mbps gigabit ethernet ports
2 SFP port
150watts available PoE
Flow control for protection against data loss
Maximum distance of 250m
Light protection (6kV)
Operating Temperature: 0 to 40 deg C (32 to 104 deg F)

High Transmission distance

With high distance connectivity, ideal for surveillance solution. Can be used with cat5e or cat6 cable.The DGS-F1018P-E features 16 ports 10/100BASE-TX ports that support the IEEE 802.3af/at PoE protocol. With total power budget of 150W.

Plug & Play Installation

The DGS-F1018P-E is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Different Switch working mode

The DGS-F1018P-E switch works in 4 operating modes using DIP switch

VLAN: Isolating ports 1-16 from each other can effectively suppress network storms and improve network performance
EXTEND: Supports 250meters long distance power supply (recommended cat 5 or above)
PoE: Automatic detection power of port, power off and restart the device if find PD device crash
QoS: Prioritize the identified video data to make video transmission smoother

Size	Desktop (with Mounting Kit)
Network Interface	16 10/100/1000 BASE-T ports, 2 SFP
Standards	Auto MDI/MDI-X adjustment on all ports
Media Interface Exchange	CE Class B, FCC Part 15，Class B, VCCI Class B, C-Tick
Lightning protection	6KV
Switching Fabric	36 Gbps
Transmission Method	Adopt Store-and-forward
Data Transfer Rates	Gigabit Ethernet -1000 Mbps, Ethernet -100 Mbps
Physical specifications	Dimensions (LxWxH): 440 x 180 x 44mm, Weight: 3kg
POE Power Budget	150W (30 W max. per PoE port)
Power	Total Power: 150W
Humidity	Operating: 0% to 95% RH non-condensing, Storage: 0% to 95% RH non-condensing

The D-Link DGS-F1018P-E16 Port Switch with 10/100/1000Mbps and 2 SFP
Ports enables you to connect Power over Ethernet (PoE) devices such as
wireless access points (APs), IP cameras, and IP phones to the network. The DGS-
F1018P-E can also connect other Ethernet devices like computers, printers and a
Network Attached Storage (NAS) to fit into any type of network application.
Power over Ethernet
DGS-F1018P-E features sixteen10/100/1000 BASE-T ports that Support the
IEEE 802.3af and IEEE 802.3at PoE protocols, supplying up to 30W on each PoE
port and Port 1-8 can support up to 250m, and providing a total power budget
of 150W. You can connect compatible devices to the DGS-F1018P-E without
using an additional power supply. This allows you to save on cabling and to
install devices in locations without immediate access to power outlets.
High Performance
The DGS-F1018P-E features plug-and-play installation and requires no
configuration. Auto MDI/MDI-X support on all ports removes the need for
crossover cables when connecting to another switch or hub, and auto-
negotiation on each port intelligently adjusts the port speed for compatibility
with the connected device. With wire-speed filtering and store-and-forward
switching, the DGS-F1018P-E maximizes network performance while
minimizing the transmission of bad network packets.

Expand and Upgrade Your Network
The DGS-F1018P-E offers an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed PoE
networking. It provides sixteen PoE ports and 2 SFP port for easy expansion of your network and supply power up to 250m* to your
PoE devices. DGS-F1018P-E, Port 1 – 8 can supply power (802.3 af/at) up to 250m distance at 10Mbps, cost-effective solution for
your SMB requirement. Unmanaged switch with rich function (Extend, VLAN, QoS and PoE) provides a reliable connection to your
company infrastructure.
