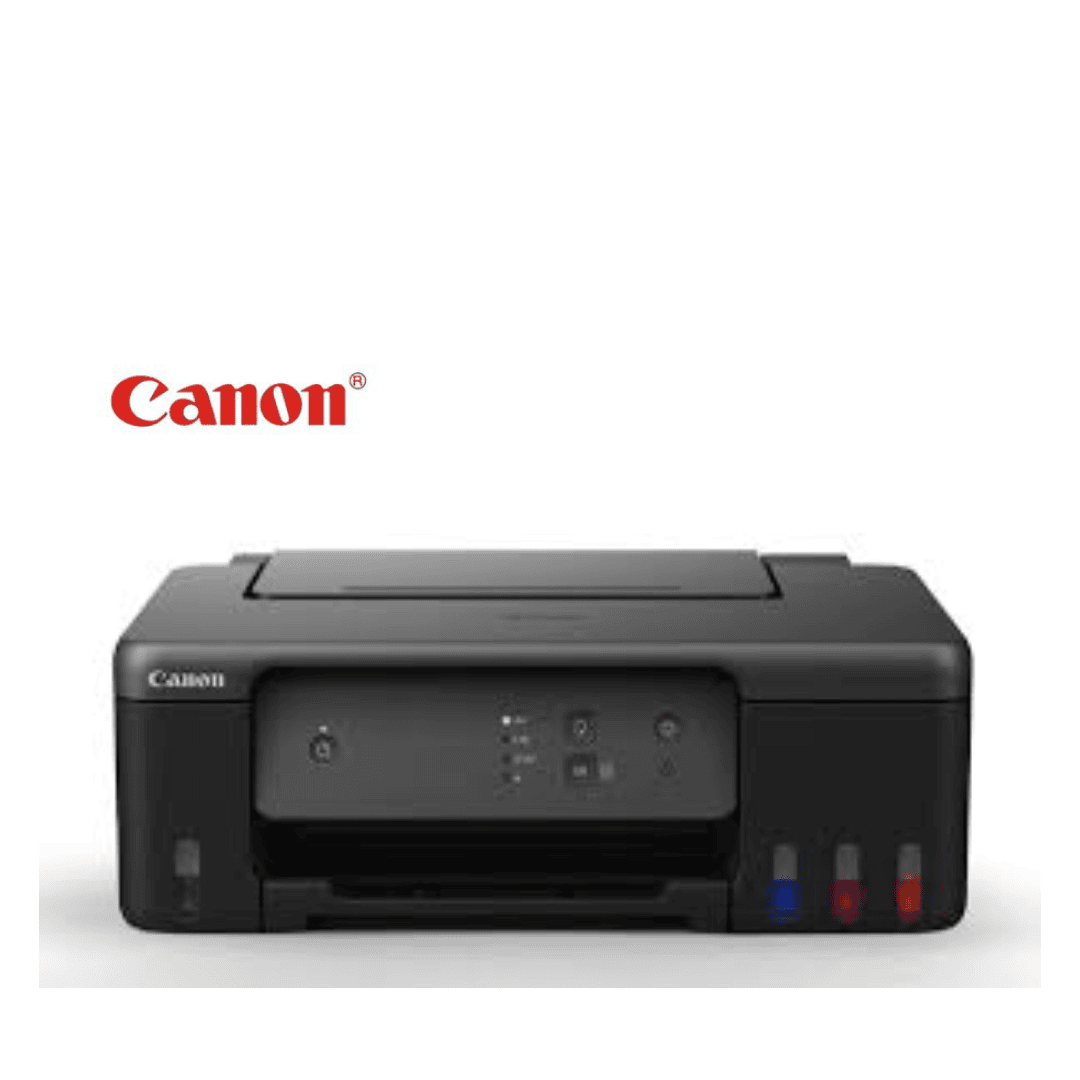

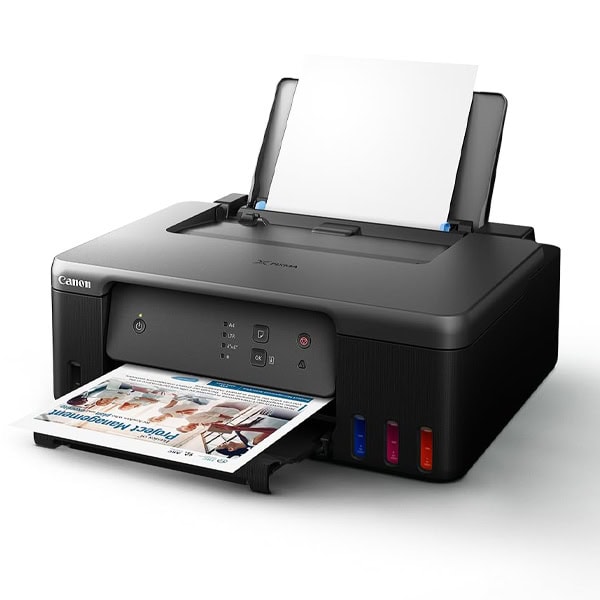

Printer Canon Pixma G1730

Print

Print Speed (A4, ISO): up to 11 / 6 ipm (mono/colour)

USB 2.0

Recommended Monthly Print Volume: 150 – 1,500 pages

Print

Print Head / Ink

Number of Nozzles: Total 1,792 nozzles

Ink Bottles (Type/Colours):
GI-71, GI-71S (Bundled)
(Pigment Ink / Black),
(Dye-Based Ink / Cyan, Magenta, Yellow)

Maintenance Cartridge: MC-G04

Maximum Printing Resolution: 4,800 (horizontal)*1 x 1,200 (vertical) dpi

Print Speed*2 (Approx.):
Based on ISO/IEC 24734

Document (ESAT/Simplex): 11 / 6 ipm (mono/colour)

Document (FPOT Ready/Simplex): 9 / 14 sec (mono/colour)

Photo (4 x 6″) (PP-201/Borderless): 45 sec

Printable Width:
Up to 203.2 m (8″)
Borderless: Up to 216 mm (8.5″)

Print Margin

Borderless Printing: Top/Bottom/Left/Right margin: 0 mm

Bordered Printing:
Envelopes (COM10, DL):
Top margin: 8 mm, Bottom margin: 12.7 mm
Left/Right margin: 3.4 mm

Envelopes (C5, Monarch)
Top margin: 8 mm, Bottom margin: 12.7 mm
Left/Right margin: 5.6 mm

B-Oficio, M-Oficio:
Top margin: 3 mm, Bottom margin: 5 mm
Left/Right margin: 6.4 mm

LTR, LGL, Foolscap, F4, Oficio2
Top margin: 3 mm, Bottom margin: 5 mm
Left margin: 6.4 mm, Right margin: 6.3 mm

Legal (India)
Top margin: 3 mm, Bottom margin: 5 mm
Left/Right margin: 5.9 mm

Square 5 x 5″ (127 x 127 mm):
Top/Bottom/Left/Right margin: 6 mm

Square 3.5 x 3.5″ (89 x 89 mm):
Top/Bottom/Left/Right margin: 5 mm

Custom Size:
Width 55 – 216 mm, Length: 89 – 1,200 mm
Top margin: 3 mm, Bottom margin: 5 mm
Left margin: 3.4 mm, Right margin: 3.4 – 9.4 mm

Others:
Top margin: 3 mm, Bottom margin: 5 mm
Left/Right margin: 3.4 mm

Supported Media

Rear Tray:
Plain Paper (64 – 105 g/m²)
High Resolution Paper (HR-101N)
Photo Paper Plus Glossy II (PP-201, PP-208)
Photo Paper Plus Semi-Gloss (SG-201)
Photo Paper Pro Luster (LU-101)
Matte Photo Paper (MP-101)
Double Sided Matte Photo Paper (MP-101D)
Envelope
Photo Stickers (PS-208/PS-808)

Paper Size

Rear Tray:
A4, A5, A6, B5, LTR, LGL, Executive, Oficio 2,
B-Oficio , M-Oficio, Legal (India), Foolscap, F4,
4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″, Envelopes (DL, COM10, C5, Monarch), Square (89 x 89 mm, 127 x 127 mm), Card Size (91 x 55 mm)

[Custom Size]
Width: 55 – 216 mm
Length: 89 – 1,200 mm

Paper Size (Borderless):
A4, B5, LTR, 4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″, Square (89 x 89 mm, 127 x 127 mm), Card Size (91 x 55 mm)

Paper Handling (Maximum Number)

Rear Tray:
[Plain Paper (A4/LTR)]
Plain Paper (64 g/m²): 100
High Resolution Paper (HR-101N): 80

[Photo Paper, 4 x 6″]
Photo Paper Plus Glossy II (PP-201): 20
Photo Paper Plus Semi-Gloss (SG-201): 20
Matte Photo Paper (MP-101): 20
Photo Paper Plus Glossy II (PP-208): 10

Paper Weight

Rear Tray:
Plain Paper: 64 – 105 g/m²
Canon Paper: Max. 265 g/m²
(Photo Paper Plus Glossy II, PP-201)

Ink End Sensor: Dot count type

Print Head Alignment: Manual

System Requirements*4

Windows 11 / 10 / 8.1 / 7 SP1
(operation can only be guaranteed on a PC with a pre-installed Windows 7 or later)

macOS 10.14.6 – 12 or later

Chrome OS

General Specifications

Interface: USB 2.0

Operating Environment

Temperature: 5 – 35°C

Humidity: 10 – 90% RH (no dew condensation)

Recommended Environment

Temperature: 15 – 30°C

Humidity: 10 – 80% RH (no dew condensation)

Storage Environment

Temperature: 0 – 40°C

Humidity: 5 – 95% RH (no dew condensation)

Quiet Mode: Available

Acoustic Noise (PC Print) (Approx.)

Plain Paper (A4, Mono)*7: 49 dB(A)

Power: AC 100 – 240 V, 50/60 Hz

Power Consumption (Approx.)

OFF: 0.1 W

Standby (scanning lamp is off)
USB connection to PC: 0.6 W

Copying*4
(USB connection to PC): 15 W

Duty Cycle: Up to 3,000 pages/month

Dimensions (WxDxH) (Approx.)

Factory Configuration: 416 x 330 x 146 mm

Output/Trays Extended: 416 x 557 x 267 mm

Weight (Approx.): 4.6 kg

Page Yield

Plain Paper (A4 pages)
(ISO/IEC 24712 test file):

Standard:
GI-71 PGBK: 6,000
GI-71 C, M, Y: 7,700*10

GI-71S PGBK: 3,100
GI-71S C, M, Y: 4,400*10

Economy*11:
GI-71 PGBK: 7,600
GI-71 C, M, Y: 8,100*10

GI-71S PGBK: 3,900
GI-71S C, M, Y: 4,600

Photo Paper (PP-201, 4 x 6″)
(ISO/IEC 29103 test file):

GI-71 PGBK: NA*12
GI-71 C, M, Y: 2,200

GI-71S PGBK: NA*12
GI-71S C, M, Y: 1,200
