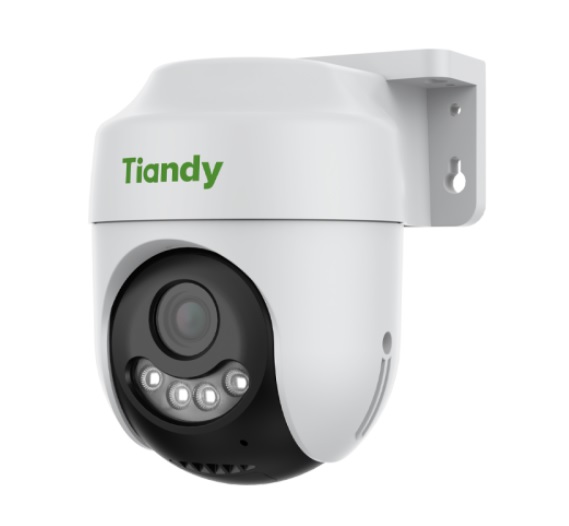

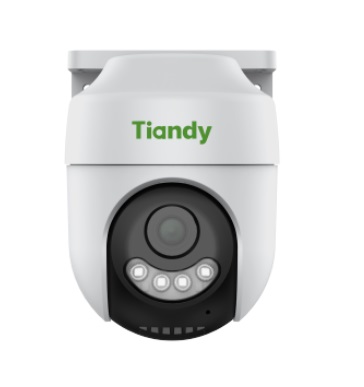

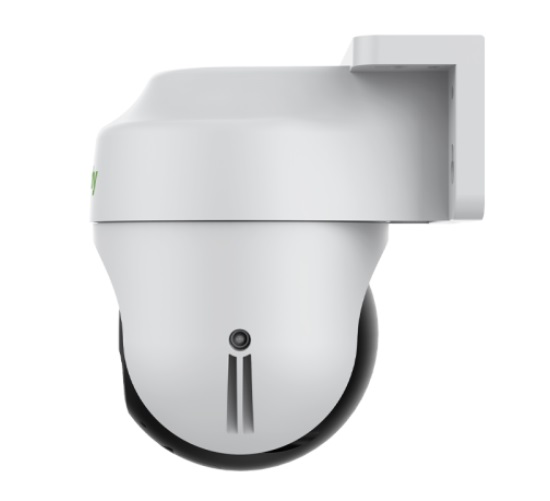

Tiandy TC-H333K 3MP Fixed Color WiFi PT Camera

Enhance your security with the Tiandy TC-H333K 3MP Fixed Color Maker Wi‑Fi PT Camera (IP66)— delivering sharp 3MP resolution with advanced full-color night vision for clear monitoring even in low light. With pan & tilt control, two-way audio, and smart motion alerts, you can stay connected to your property anytime, anywhere. Built with durable weather-resistant design and easy WiFi setup, it’s perfect for both home and business protection.

Smart monitoring. Full-color clarity. Total peace of mind.

KEY FEATURES of Tiandy TC-H333K 3MP Fixed Color WiFi PT Camera

Plastic housing
Up to 3MP,2304×1296@20fps
S+265/H.265/H.264B/H.264M/H.264H
Color:0.001lux@(F1.6,AGC ON),B/W:0Lux with IR
IR range up to 30m

1×Built-in Mic, 1×Built-in Loudspeaker
Support microSD/microSDHC/microSDXC card,up to
256GB
Operating conditions -30°C~60°C(-22°F~140°F), ≤95%RH
DC12V±25%,Max. 12W
IP66

SPECIFICATIONS
Camera
Image Sensor 1/2.8″CMOS
Min. Illumination Color:0.001lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
Smart IR Yes
WDR DWDR
S/N >48dB
Angle Adjustment 0~345°; 0~90°(T)
Lens
Lens Type Fixed focal lens
Focal Length 4mm
Lens Mount M12
Aperture Range F1.6
Aperture Type Fixed
Field of View 86.8°(H); 46.1°(V); 99.7°(D)

DORI Distance

Detect: 65.31m
Observe: 25.92m
Recognize: 13.06m
Identify: 6.53m

Pan&Tilt
Pan Speed 30°/s
Tilt Speed 25°/s
Preset 255
Illuminator
IR LEDs 4
IR Distance Up to 30m
Wavelength 850nm
White LEDs 4
Whitelight Distance 15m
Red and Blue Alarm Flash Yes
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~4Mbps
Audio Compression G.711A/G.711U
Audio Sampling Rate 8kHz/16kHz
Max. Resolution 3MP,2304×1296@20fps

2025.04.24

Main Stream

PAL:20fps(2304×1296, 1920×1080, 1280×720, 640×480, 704×576)
NTSC:20fps(2304×1296, 1920×1080, 1280×720, 640×480, 704×480)

Sub Stream

PAL:20fps(704×576, 704×288, 640×360, 352×288, 800×488)
NTSC:20fps(704×480, 704×240, 640×360, 352×240, 800×488)

BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
White Balance

OSD

Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese
characters per region; 16*16/32*32/48*48; Lattice

Privacy Mask 4 black static areas
Defog Yes
Feature
Exceptions Alarm Disk Full; Disk R/W Error; IP Address Conflict; Network Disconnection
Linkage Method Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture
Video Analytics Smart Alarm
Auto-Tracking Yes
Network
ANR Yes
Protocols RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast
System Compatibility ONVIF(Profile S/T) ; SDK; CGI; Milestone
Remote Connection ≤2
Client Easy7 VMS
Moblie Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Wi-Fi
Transmission Distance Up tp 30m( based on actual environment)
Wireless Standard IEEE802.11b/ 802.11g/802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz
Wi-Fi Security WPA-PSK/WPA2-PSK
Interface
Communication Interface 1×RJ-45 (10/100 Base-T)
Built-in Mic 1×Built-in Mic
Built-in Speaker 1×Built-in Loudspeaker
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 256GB

2025.04.24

General
Web Client Language

3 languages
Simple Chinese/English/Vietnamese
Operating Temperature -30°C~60°C(-22°F~140°F)
Operating Humidity ≤95%RH
Storage Temperature -30°C~60°C(-22°F~140°F)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 12W
Protection Surge4000V; ESD6000V; IP66

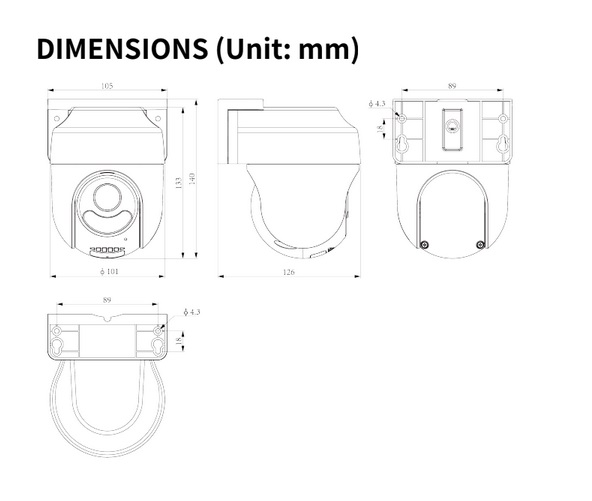

Boundary Dimensions 104.5(L)125.5(W)140(H)mm
Package Dimensions 135(L)135(W)190(H)mm
GrossWeight 0.53kg
