Tiandy TC-H332N 9DA-4 3MP Color WiFi PT Camera

The Tiandy TC-H332N 9DA-4 is a compact 3MP Wi-Fi pan-tilt security camera designed for smart home and small business surveillance. It delivers clear 2304×1296 video with Color Maker technology for vivid full-color imaging even in low light, supported by IR night vision up to ~15–20m. With 360° pan/tilt coverage, built-in mic and speaker for two-way audio, and smart features like human detection and auto-tracking, it ensures reliable real-time monitoring. Easy to install, it supports Wi-Fi connectivity, mobile app access, and microSD storage (up to 256GB) for local recording

KEY FEATURES of Tiandy TC-H332N 9DA-4 3MP Color WiFi PT Camera

Plastic housing
Up to 3MP,2304×1296@20fps
S+265/H.265/H.264B/H.264M/H.264H
Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
IR range up to 15m

1×Built-in Mic, 1×Built-in Loudspeaker
Support microSD/microSDHC/microSDXC card,up to
256GB
Operating conditions -10°C-45°C(14°F~113°F), ≤95%RH
DC5V±5% USB type-C,Max.5W

SPECIFICATIONS
Camera
Image Sensor 1/3″CMOS
Min. Illumination Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
Smart IR Yes
WDR DWDR
S/N >38dB
Angle Adjustment 0-350°; -25-90°
Lens
Lens Type Fixed focal lens
Focal Length 4mm
Lens Mount M12
Aperture Range F2.0
Aperture Type Fixed
Field of View 51°(H); 26.3°(V); 60.3°(D)

DORI Distance

Detect:59.3m
Observe:23.5m
Recognize:11.9m
Identify:5.9m

Pan&Tilt
Pan Speed 45°/s
Tilt Speed 30°/s
Preset 255
Illuminator
IR LEDs 4
IR Distance Up to 15m
Wavelength 850nm
White LEDs 1
Whitelight Distance 10m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~4Mbps
Audio Compression G.711A/G.711U
Audio Sampling Rate 8kHz/16kHz
Max. Resolution 3MP,2304×1296@20fps

2024.11.26

Main Stream

PAL:
20fps(2304×1296, 1920×1080, 1280×720, 704×576)
NTSC:
20fps(2304×1296, 1920×1080, 1280×720, 704×480)

Sub Stream

PAL:20fps(704×576, 704×288, 352×288, 640×360)
NTSC:20fps(704×480, 704×240, 352×240, 640×360)

BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
White Balance

OSD

Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese
characters per region; 16*16/32*32/48*48; Lattice

Privacy Mask 4 black static areas
Defog Yes
Feature
Exceptions Alarm Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict
Linkage Method Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture
Video Analytics Smart Alarm
Auto-Tracking Yes
Network
Protocols RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast; FTP
System Compatibility ONVIF(Profile S/T) ; SDK; CGI; Milestone
Remote Connection ≤2
Client Easy7 VMS
Mobile Client EasyLive Plus
Web IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Wi-Fi
Transmission Distance Up tp 30m( based on actual environment)
Wireless Standard IEEE802.11b/ 802.11g/802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz
Wi-Fi Security WPA-PSK/WPA2-PSK
Interface
Communication Interface 1×RJ-45 (10/100 Base-T)
Built-in Mic 1×Built-in Mic
Built-in Speaker 1×Built-in Loudspeaker
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 256GB

2024.11.26

General
Web Client Language

3languages
Simple Chinese/English/Tiếng Việt
Operating Temperature -10°C-45°C(14°F~113°F)
Operating Humidity ≤95%RH
Storage Temperature -10°C-45°C(14°F~113°F)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC5V±5% USB type-C,Max.5W
Protection Surge500V; ESD6000V

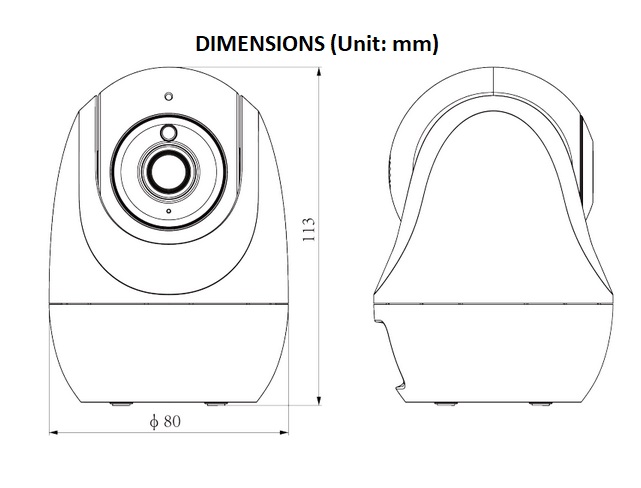

Boundary Dimensions 80(L)80(W)113(H)mm
Package Dimensions 97(L)97(W)165(H)mm
GrossWeight 0.36kg
