TC-H332A 3MP Fixed Color Maker Wi-Fi PT Camera

Upgrade your security with the TC-H332A 3MP Fixed Color Maker Wi-Fi PT Camera — a smart surveillance solution built for modern homes and businesses. Featuring full-color night vision, pan & tilt control, and seamless WiFi connectivity, this camera ensures 24/7 crystal-clear monitoring from anywhere. With motion detection alerts and easy mobile app access, staying protected has never been this simple.

Reliable. Smart. Secure.

KEY FEATURES of  TC-H332A 3MP Fixed Color Maker Wi-Fi PT Camera

Plastic housing
Up to 3MP,2304×1296@20fps
S+265/H.265/H.264B/H.264M/H.264H
Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
IR range up to 15m

1×Built-in Mic,1×Built-in Loudspeaker
Support microSD/microSDHC/microSDXC card,up to 512GB
Operating conditions -10°C-45°C(14°F~113°F), ≤95%RH
DC5V±5%,Max. 7W

SPECIFICATIONS of

Image Sensor 1/3″CMOS
Min. Illumination Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
Smart IR Yes
WDR DWDR
S/N >38dB
Angle Adjustment 0~350°(P); -90~90°(T)
Lens
Lens Type Fixed focal lens
Focal Length 4mm
Lens Mount M12
Aperture Range F2.0
Aperture Type Fixed
Field of View 82.5°(H); 44°(V); 97.8°(D)
DORI Distance Detect:65.31m
Observe:25.92m
Recognize:13.06m
Identify:6.53m

Pan&Tilt
Pan Speed 45°/s
Tilt Speed 30°/s
Preset 255
Illuminator
IR LEDs 4
IR Distance Up to 15m
Wavelength 850nm
White LEDs 1
Whitelight Distance 8m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~4Mbps
Audio Compression G.711A/G.711U
Audio Sampling Rate 8kHz/16kHz
Max. Resolution 3MP,2304×1296@20fps
Main Stream PAL:

20fps(2304×1296, 1920×1080, 1280×720, 704×576)
NTSC:
20fps(2304×1296, 1920×1080, 1280×720, 704×480)

2024.07.29

Sub Stream PAL:20fps(704×576, 704×288, 352×288, 640×360)
NTSC:20fps(704×480, 704×240, 352×240, 640×360)

BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock

White Balance

OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese

characters per region; 16*16/32*32/48*48; Lattice

Privacy Mask 4 black static areas
Defog Yes
Feature
Exceptions Alarm Disk Full; Disk R/W Error; IP Address Conflict
Linkage Method Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture
Video Analytics Smart Alarm
Auto-Tracking Yes
Network
Protocols RTSP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast
System Compatibility ONVIF(Profile S/T) ; SDK; CGI; Milestone
Remote Connection ≤2
Client Easy7 VMS
Moblie Client EasyLive Plus
Wi-Fi
Transmission Distance Up tp 30m( based on actual environment)
Wireless Standard IEEE802.11b/ 802.11g/802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz
Wi-Fi Security WPA-PSK/WPA2-PSK
Interface
Built-in Mic 1×Built-in Mic
Built-in Speaker 1×Built-in Loudspeaker
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
General
Operating Temperature -10°C-45°C(14°F~113°F)
Operating Humidity ≤95%RH
Storage Temperature -10°C-45°C(14°F~113°F)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC5V±5%,Max. 7W
Protection Surge500V; ESD6000V

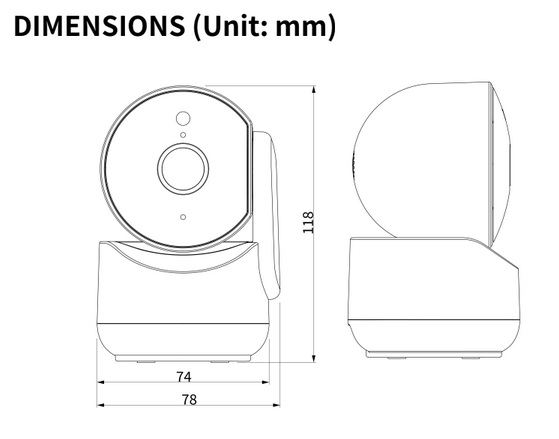

Boundary Dimensions 74(L)74(W)118(H)mm
