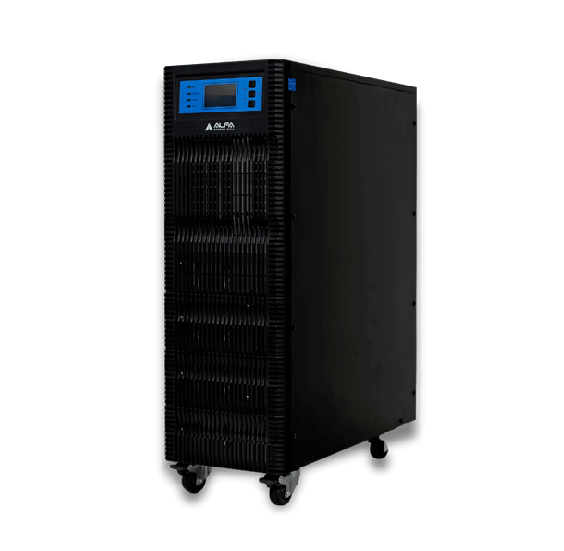

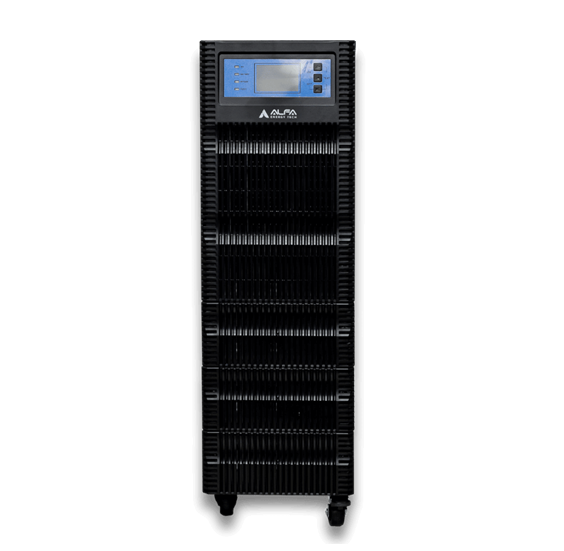

ALFA Energy Neo Plus 6000 6KVA/6KW True Online Double Conversion UPS

ALFA Energy Neo Plus 6000 6KVA/6KW True Online Double Conversion UPS

The ALFA Energy Neo Plus UPS Series delivers true online double-conversion technology, offering seamless power protection with a unity power factor (KVA=KW), making it an ideal solution for mission-critical environments. Available in a range from 1KVA to 10KVA, the Neo Plus series provides unmatched performance, energy efficiency, and compact design to meet the needs of demanding power conditions.

This UPS series ensures uninterrupted power for a wide range of applications such as IT and network equipment, data centers, telecommunication systems, factory production lines, and more. Its high energy density and small footprint maximize space while providing reliable, clean power. The UPS offers a wide input voltage window, excellent voltage regulation, and high efficiency, making it a cost-effective solution for continuous operation and reduced energy costs.

Key Features:

• True Online Double-Conversion: Ensures continuous and clean power with no transfer time between modes.
• Unity Power Factor: Delivers full KVA=KW output, maximizing the real power available.
• High Efficiency: Up to 95.5% efficiency at rated load and up to 99% in ECO mode, significantly reducing energy consumption.
• Advanced LCD Display: Real-time monitoring of input/output voltage, frequency, battery status, and more.
• Compact & Space-Saving Design: High energy density minimizes UPS size and reduces the space required in installation environments.
• Emergency Power Off (EPO): Provides remote shutdown for safety in the event of an emergency.
• Parallel Capability: Allows 1+1 parallel operation for added redundancy or increased capacity.
• Wide Input Voltage Range: Operates efficiently with input voltage as low as 110V, handling power fluctuations with ease.

Technical Specifications:

Applications:

• IT and Network Equipment: Safeguards critical infrastructure with continuous power supply.
• Small & Medium Data Centers: Ensures stable, clean power for servers and network systems.
• Telecommunication Systems: Maintains uptime for essential communication networks.
• Production Line Control: Provides reliable power for factory automation and control systems.
• Security and Broadcasting Systems: Protects sensitive equipment from power fluctuations.

Safety and Standards:

• Safety Compliance: IEC/EN62040-1, IEC/EN60950-1
• EMC Compliance: IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
• Overload Protection: Withstands up to 150% overload for 30 seconds (PF=1), ensuring robust performance under heavy loads.

Field of Application:

• IT and Network equipment
• Data Centers
• Telecommunication Systems
• Embedded and Automatic Control Systems
• Electrical and Railway Signaling Systems
• Security Systems
• Television Broadcast Systems
• Factory Production Lines

The ALFA Energy Neo Plus UPS Series provides reliable power protection and energy efficiency, ensuring your systems remain operational and secure in any situation.
